Listed below are some "Typical" notes, materials, rivets, screws/bolts, washers and nuts/nutplates that are called out on the most drawings. Please note that this is not an all inclusive list. Compliance & Design, LLC., will make every attempt to work with your available stock as long as compliance with the FARs will be met. Also at the end of this page is some useful links for purchasing parts and materials in small quick quantities.

The approved material will be based on the original material of the aircraft part which the installation or repair is being worked. Therefore in many cases 2024-T3 clad (QQ-A-250/5) sheet aluminum will be required but other typical materials which maybe called out are: 7075-T6 clad (QQ-A-250/13) sheet aluminum, 6061-T6 (QQ-A-250/11) sheet aluminum and AISI 301-1/2 hard sheet stainless steel. The following extrusion or pre-formed materials may be called for various repairs and installations: 2024-T3511 (QQ-A-200/3) extruded aluminum, 7075-T6511 (QQ-A-200/11) extruded aluminum, 6061-T6511 (QQ-A-200/8) extruded aluminum and AISI 4130 steel. This is not an all inclusive list of materials, we will work with our customers to find a material which meets the FARs.

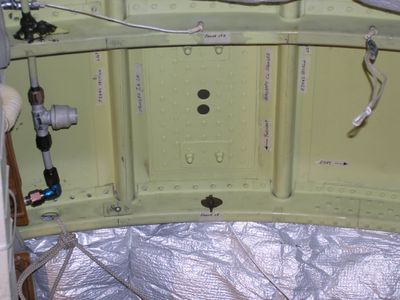

The approved rivets will be determined by the original material type and thickness of the of the aircraft part which the installation or repair is being worked. The following lists the most typical rivets and when they will be used.

⦁ NAS1097AD4 Flush rivet for 0.032", 0.040" and 0.050" thick aluminum sheet

⦁ NAS1097AD5 Flush rivet for 0.040", 0.050" and 0.063" thick aluminum sheet

⦁ MS20426AD4 Flush rivet for 0.063", 0.071" and 0.080" thick aluminum sheet

⦁ MS20426AD5 Flush rivet for 0.071", 0.080", 0.090" and 0.100" thick aluminum sheet

⦁ MS20470AD4 Buttonhead Rivet for 0.025" to 0.090" thick aluminum sheet

For a flush fastener in material thinned that 0.032" the fastener hole will need to be dimpled.

This rivet information is only typical and is not always the case as some aircraft manufacturers have their own philosophy. Dassault Aviation uses a French rivet which is equivalent to a "D" rivet (2017-T3), therefore to keep commonality we will call out "D" for installations or repairs to the Dassault Aircraft. Sabreliner Corporation uses MS20426AD5 and NAS1097DD6 in the 0.050" thick aircraft skins, we will call out similar fasteners as required.

The following typical hardware will be called out.

Screws/Bolts

⦁ Button Head #6 (6-32 thread) Screw MS35206

⦁ Button Head #8 (8-32 thread) Screw MS27039-08

⦁ Button Head #10 (10-32 thread) Screw MS27039-1

⦁ Button Head 1/4" (1/4-28 thread) Screw MS27039-4

⦁ Flush Screw #6 (6-32 thread) Screw MS24693S

⦁ Flush Screw #8 (8-32 thread) Screw MS24694S

⦁ Flush Screw #10 (10-32 thread) Screw MS24694S

⦁ Flush Screw 1/4" (1/4-28 thread) Screw MS24694S

⦁ Bolt #10 (10-32 thread) NAS1103 or NAS6203

⦁ Bolt 1/4" (1/4-28 thread) NAS1104 or NAS6204

⦁ Shear Head Flush #8 (8-32 thread) Screw NAS8602

⦁ Shear Head Flush #10 (10-32 thread) Screw NAS8603

⦁ Shear Head Flush 1/4" (1/-28 thread) Screw NAS8604

⦁ Shear Head Flush #10 (10-32 thread) Screw 7S39-3

⦁ Shear Head Flush 1/4" (1/4-28 thread) Screw 7S39-4

Washers

⦁ Flat #6 AN960-6

⦁ Flat #8 AN960-8

⦁ Flat #10 AN960-10

⦁ Flat 1/4 AN960-416

Nuts/Nutplates

⦁ Low Height Nut, Self Locking #6 MS21042-06

⦁ Low Height Nut, Self Locking #8 MS21042-08

⦁ Low Height Nut, Self Locking #10 MS21042-3

⦁ Low Height Nut, Self Locking 1/4" MS21042-4

⦁ Floating Nutplate, Self Locking #6 MS21059L06

⦁ Floating Nutplate, Self Locking #8 MS21059L08

⦁ Floating Nutplate, Self Locking #10 MS21059L3

⦁ Floating Nutplate, Self Locking 1/4" MS21059L4

⦁ Domed Floating Nutplate, Self Locking #8 NAS1473A08

⦁ Domed Floating Nutplate, Self Locking #10 NAS1473A3

⦁ Domed Floating Nutplate, Self Locking 1/4" NAS1473A4

⦁ Domed Floating Nutplate, Reduced Lug Spacing #6 NAS1474A06

⦁ Domed Floating Nutplate, Reduced Lug Spacing #8 NAS1474A08

⦁ Domed Floating Nutplate, Reduced Lug Spacing #10 NAS1474A3

⦁ Domed Floating Nutplate, Reduced Lug Spacing 1/4" NAS1474A4

Please note that this is not an all inclusive list. Compliance & Design, LLC., will make every attempt to work with your available stock as long as compliance with the FARs can be met.
